YF205 Automatic Door Function Remote Controller

YF205 Automatic Door Function Remote Controller
Main Characteristic

High-current electric lock output module.

DC/AC 12V ~ 36V DC power input and convenient to take power from sliding  door units .

Delicate shell design, easy-to-fixed, compact and small size.

Built-in surge absorber to prevent the return spark of electric lock.

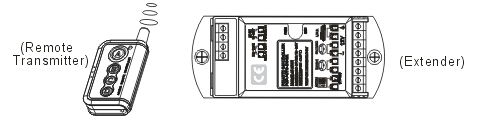

Remote trnsmitter with 4 keys to carry out the 4 operations of autodoor.

All induction gated signal unified into the Extender which  outputs  the signal to autodoor  and electric locks. With time difference setting to ensure the autodoor runs automatically.

Using remote controller to switch function,validity action confirms by voice indicator.


Porduct Over-view

This product is with the function of coding self-learn.Make sure the code of  remote transmitter has been learned into the receiver before using  (16 kinds of codes can be learned)

Operation way: Press the learned button,indicator turns  green.Press any key of the remote transmitter. The transimitter has been  learned by the  receiver successfully  with two flashes of green light appears.

Delete method: Press the learn button  for 5S,green light  flashing, all the codes  has been deleted successfully( Can not delete one by one)


Press the remote control A key(Full lock): All probe and access controller are lose  effectiveness. electric lock locked automatically. People inside and outside can not  enter in.Be used  for preventing thieves  at night  or on holidays periods.

Press the remote control B key(Unidirectional): External probe is lose effectiveness and electric lock locked automatically while external access controller and internal probe are available.Only insider can get in by swiping card. Internal probe is
effective,people can get out.Be used for clearing up a gathering place .

Press the remote control C key(Full open): All probe and access controller  are lose effectiveness. Door keeps fully open. For emergency using.

Press the remote control D key(Bi-directional): Internal and external probes are effective .  Working hours with normal business.

Technical Parameters

Power supply:AC/DC 12~36V
Current of  electric  lock:3A(12V)
Static Power:35mA
Action current:85mA(Non-current electric lock)
The interval time to open lock and auto-door:0.5s
Professional appliance: Built-in surge absorber
Transmitting and receiving method: Microwave level with a roller code
Remote control battery using life :≥18000 times
Working environment temperature:-42℃~45℃
 Working environment humidity:10~90%RH
Appearance dimension:123(L)x50(W)x32(H)mm
The total weight:280g
