YF150 Automatic Sliding Door Motor
YF150 Automatic Sliding Door Motor-1 YF150 Automatic Sliding Door Motor-2YF150 Automatic Sliding Door Motor-3YF150 Automatic Sliding Door Motor-4

YF150 Automatic Sliding Door Motor

YF150 Automatic sliding door motor is widely used in automatic sliding door operators. It is 24V 60W brushless DC motor. The motor is silence during working.

Categories: Automatic Door Motor
Product Description

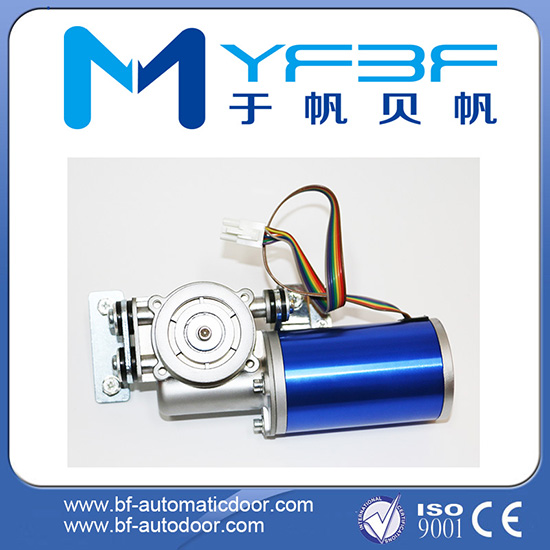

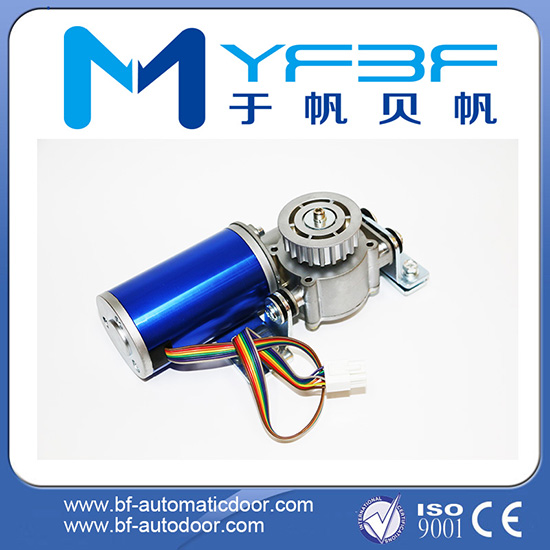

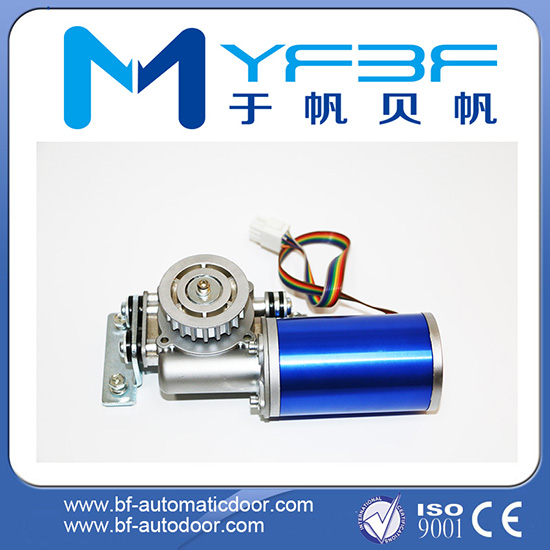

YF150 24VDC 60W Automatic sliding door brushless motor

Brand YFBF
Model YF150
Rated Voltage 24V
Rated Power 60W
No-load RPM 200RPM
On-load RPM 115RPM
No-load Current 0.55A
On-load Current 1.4A
Certificate CE
Warranty 18Month

1, we adopt brushless DC technology, service life of the brushless DC motor is longer than the brush motor, and it can be with better reliability.

2, small volume, strong power, powerful working force

3, ultra-quiet sound design, low noise, small vibration, we adopt the automatic lubrication technology.

4, it is made with high-strength aluminum alloy material, strong and durable

5, it can work with the bearing metal alloy wheel driving belt, and with good quality, stability and high applicability.

6, fully sealed structure, durable, no leaking, we adopt the rubber band to protect screws, which makes it to be with anti-pressure and weight-bearing.

7, it can work with internal security protection circuit device, even if the automatic door opens and closes frequently, it also can run with long-term no-trouble.

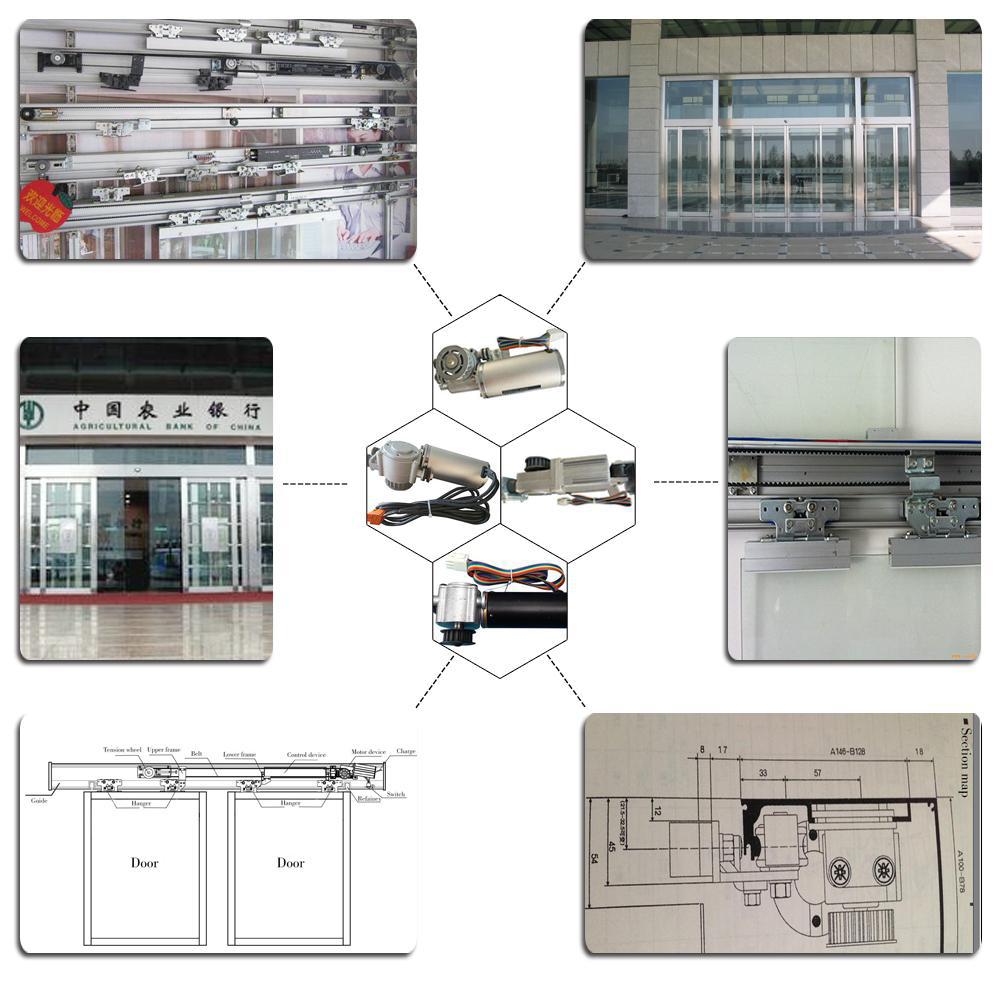

Application Area


 Our Serivce

1. As a professional manufactory, we also produce and sell accessories of automatic doors.

2. We design and manufacture automatic doors systems for our customers, see our automatic door systems following:

1) Automatic sliding door system

2) Automatic swing door system

3) Central motor systems

We sell following Accessories:

a)Automatic door motor



d)Idler Pulley

e)Radar Sensor

f)Safety Beam

g)Remote controller

and etc.


Trade Term EXW, FOB, CIF

Payment T/T, Western Union

MOQ 10pcs

Package Exporting Carton, Flycase, Wooden Case

Lead time Small quantity: Within 5days

Large quantity: Within 20days

OEM,ODM OEM and ODM are available

Warranty 12 Months
